#Introduction

The layout system in Sheaf UI provides a flexible foundation for building application interfaces. These components work together seamlessly to create responsive, accessible layouts with minimal configuration.

The system includes four core components:

• Layout - The container that orchestrates layout behavior
• Sidebar - Collapsable navigation with responsive behavior
• Navlist - Structured navigation items and groups
• Header - Top bar for branding and actions
• Navbar - Structured navigation items for header

#Installation

Use the Sheaf artisan command to install all layout components:

php artisan sheaf:install layout sidebar navlist navbar

#Layout Variants

Sheaf UI offers two primary layout variants, each optimized for different use cases.

if you need more variants ask us with details

#Sidebar-Main Layout

The classic dashboard pattern with a prominent sidebar containing primary navigation. The sidebar spans the full height and can collapse to icon-only mode.

#Usage

<x-ui.layout>
    <x-ui.sidebar>
        <x-slot:brand>
            <x-ui.brand name="Your App" href="/" />
        </x-slot:brand>

        <x-ui.navlist>
            <x-ui.navlist.item label="Dashboard" icon="home" href="/" />
            <x-ui.navlist.item label="Settings" icon="cog-6-tooth" href="/settings" />
        </x-ui.navlist>
    </x-ui.sidebar>

    <x-ui.layout.main>
        <x-ui.layout.header>
            <x-ui.navbar>
                <x-ui.navbar.item label="Home" icon="home" />
            </x-ui.navbar>

            <!-- User menu, search, etc. -->
        </x-ui.layout.header>

        <!-- Your page content -->
        <div class="p-6">
            {{ $slot }}
        </div>
    </x-ui.layout.main>
</x-ui.layout>

#Visual Example

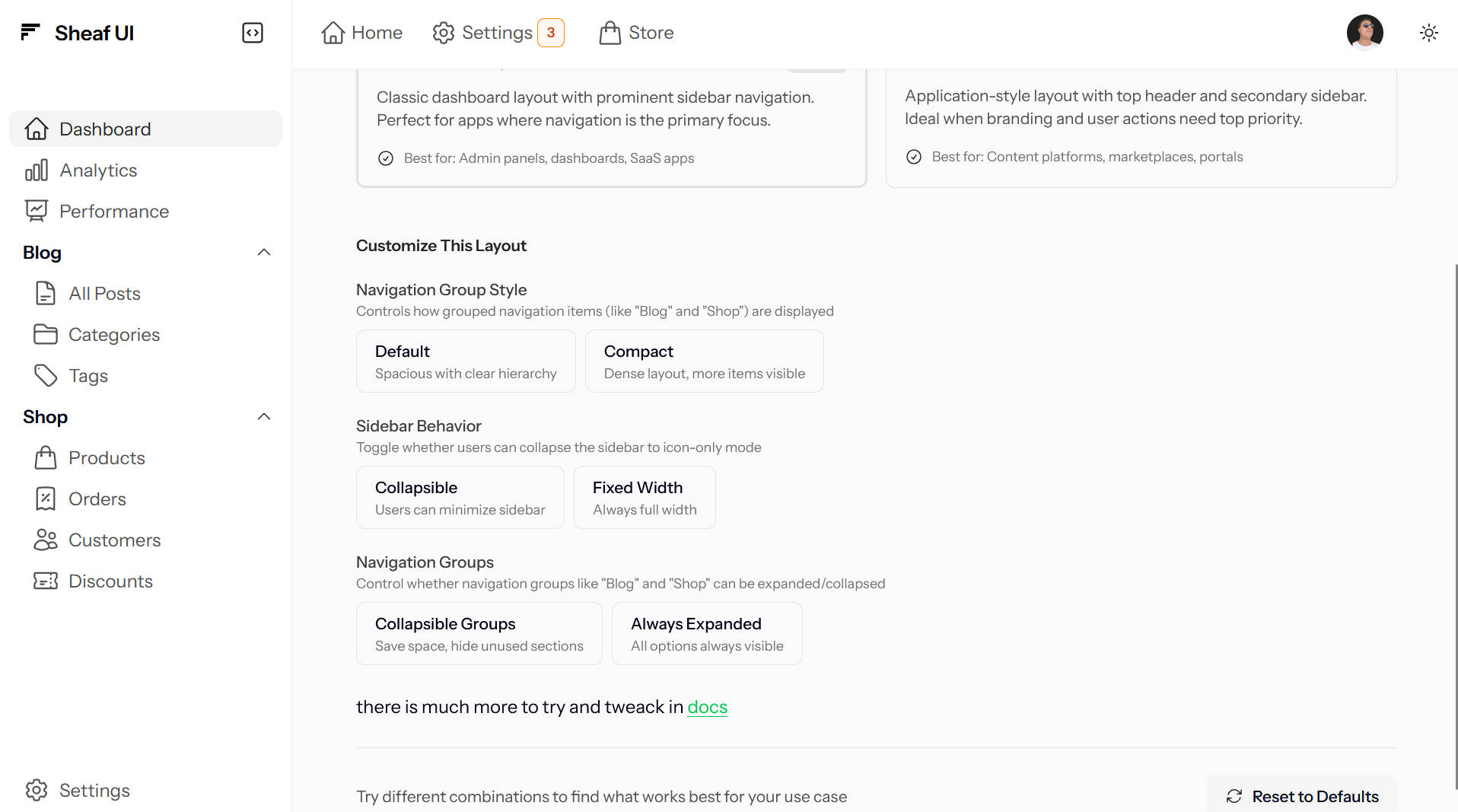

Sidebar-main layout: Navigation-first dashboard pattern

#Header-Sidebar Layout

An application-style layout with a top header containing branding and primary actions, with a secondary sidebar for navigation. The header spans the full width above both the sidebar and main content.

#Usage

<x-ui.layout variant="header-sidebar">
    <x-ui.layout.header>
        <x-slot:brand>
            <x-ui.brand name="Your App" href="/" />
        </x-slot:brand>

        <x-ui.navbar class="flex-1">
            <x-ui.navbar.item label="Home" icon="home" />
            <x-ui.navbar.item label="Products" icon="shopping-bag" />
        </x-ui.navbar>

        <!-- User menu, notifications, etc. -->
        <div class="ml-auto flex items-center gap-4">
            <x-ui.avatar src="/user.png" />
        </div>
    </x-ui.layout.header>

    <x-ui.sidebar>
        <x-ui.navlist>
            <x-ui.navlist.item label="Dashboard" icon="home" href="/" />
            <x-ui.navlist.group label="Content">
                <x-ui.navlist.item label="Posts" icon="document" />
                <x-ui.navlist.item label="Pages" icon="folder" />
            </x-ui.navlist.group>
        </x-ui.navlist>
    </x-ui.sidebar>

    <x-ui.layout.main>
        <!-- Your page content -->
        <div class="p-6">
            {{ $slot }}
        </div>
    </x-ui.layout.main>
</x-ui.layout>

#Visual Example

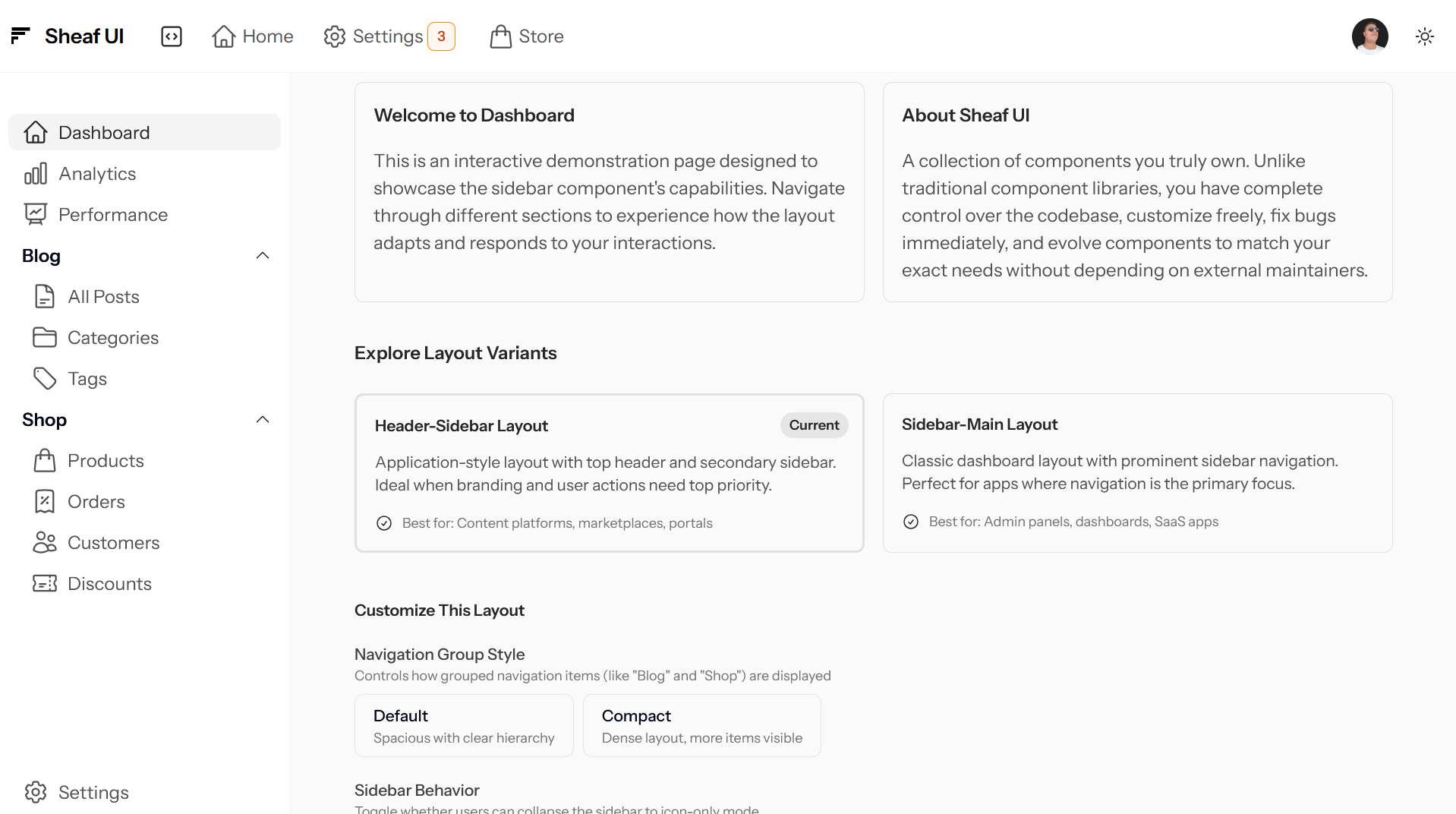

Header-sidebar layout: Application-style with prominent header

#Core Components Overview

#Layout Component

The root <x-ui.layout> component orchestrates the entire layout system. It handles:

• Responsive breakpoint detection
• Sidebar collapse state management
• Mobile overlay behavior
• CSS custom properties for sizing
• Alpine.js state coordination

#Sidebar

Provides collapsable navigation with responsive behavior across all screen sizes. Adapts automatically based on parent layout variant.

Key features:

• Mobile overlay with backdrop
• Icon-only collapsed state on desktop
• Persistent state via localStorage
• Touch-optimized interactions
• Scrollable content area

#Header

Top bar component for branding, navigation, and user actions. Behavior changes based on layout variant.

In sidebar-main: Optional secondary navigation bar
In header-sidebar: Primary header spanning full width

#Navlist

Structures navigation items and groups within the sidebar. Handles active states, nesting, and collapse behavior.

Features:

• Individual navigation items
• Collapsable groups
• Active state indicators
• Tooltip support when sidebar collapsed
• Flexible variants (default, compact)

#Navbar

Horizontal navigation component for the header. Provides top-level or contextual navigation.

#Common Patterns

#Full Application Layout

Complete layout with all components working together:

<x-ui.layout>
    <x-ui.sidebar :collapsable="true">
        <x-slot:brand>
            <x-ui.brand name="My App" href="/" />
        </x-slot:brand>

        <x-ui.navlist>
            <x-ui.navlist.item label="Dashboard" icon="home" href="/" />

            <x-ui.navlist.group label="Content" :collapsable="true">
                <x-ui.navlist.item label="Posts" icon="document-text" href="/posts" />
                <x-ui.navlist.item label="Pages" icon="folder" href="/pages" />
            </x-ui.navlist.group>

            <x-ui.navlist.group label="Shop">
                <x-ui.navlist.item label="Products" icon="shopping-bag" href="/products" />
                <x-ui.navlist.item label="Orders" icon="receipt-percent" href="/orders" />
            </x-ui.navlist.group>
        </x-ui.navlist>

        <x-ui.sidebar.push />

        <x-ui.navlist>
            <x-ui.navlist.item label="Settings" icon="cog-6-tooth" href="/settings" />
        </x-ui.navlist>
    </x-ui.sidebar>

    <x-ui.layout.main>
        <x-ui.layout.header>
            <x-ui.sidebar.toggle class="md:hidden" />

            <x-ui.navbar class="flex-1 hidden lg:flex">
                <x-ui.navbar.item label="Home" icon="home" />
                <x-ui.navbar.item label="Discover" icon="magnifying-glass" />
            </x-ui.navbar>

            <div class="ml-auto flex items-center gap-4">
                <x-ui.theme-switcher />
                <x-ui.avatar src="/user.png" />
            </div>
        </x-ui.layout.header>

        <div class="p-6">
            {{ $slot }}
        </div>
    </x-ui.layout.main>
</x-ui.layout>

#Bottom-Aligned Navigation Items

Use <x-ui.sidebar.push /> to push subsequent items to the bottom of the sidebar:

<x-ui.navlist>
    <!-- Top navigation -->
    <x-ui.navlist.item label="Dashboard" icon="home" />
    <x-ui.navlist.item label="Analytics" icon="chart-bar" />
</x-ui.navlist>

<!-- Spacer pushes everything below to bottom -->
<x-ui.sidebar.push />

    <!-- Bottom navigation -->
<x-ui.navlist>
    <x-ui.navlist.item label="Settings" icon="cog-6-tooth" />
    <x-ui.navlist.item label="Logout" icon="arrow-right-on-rectangle" />
</x-ui.navlist>

#Grouped Navigation with Variants

Control how navigation groups appear using the variant prop:

<!-- Default: Spacious groups with clear hierarchy -->
<x-ui.navlist.group label="Content" variant="default">
    <x-ui.navlist.item label="Posts" icon="document-text" />
    <x-ui.navlist.item label="Pages" icon="folder" />
</x-ui.navlist.group>

<!-- Compact: Dense layout showing more items -->
<x-ui.navlist.group label="Shop" variant="compact">
    <x-ui.navlist.item label="Products" icon="shopping-bag" />
    <x-ui.navlist.item label="Orders" icon="receipt-percent" />
    <x-ui.navlist.item label="Customers" icon="users" />
</x-ui.navlist.group>

#Responsive Behavior

The layout system automatically adapts across breakpoints:

#Mobile (< 768px)

• Sidebar becomes overlay with backdrop
• Toggle button visible in header
• Tap outside to close sidebar
• Full-width main content

#Tablet (768px - 1024px)

• Sidebar always in collapsed (icon-only) mode
• Visible alongside main content
• Tap sidebar to toggle on touch devices

#Desktop (>= 1024px)

• Full collapsable/expandable sidebar
• State persists in localStorage
• Smooth width transitions
• Keyboard shortcuts supported
• Hover shows tooltips

#Design Principles

#Composition Over Configuration

Small, focused components that compose together rather than monolithic components with dozens of props.

#Contextual Awareness

Child components automatically adapt based on parent state (e.g., navlist items show tooltips when sidebar is collapsed).

#Progressive Enhancement

Works without JavaScript for basic functionality, enhanced with Alpine.js for interactive features.

#Accessibility First

Built-in ARIA attributes, keyboard navigation, and screen reader support throughout.
